This PD type filter bag hoist discharge centrifuge is a kind of improved centrifuge base on SD series three feet up discharge centrifuge. All parts of centrifuge is made of stainless steel 304, food grade one. With the features of reduce labor intensity, quick discharging, easy cleaning filter bag, the PD series centrifuge machine has received good reputation.
This PD type filter bag hoist discharge centrifuge is a kind of improved centrifuge base on SD series three feet up discharge centrifuge. All parts of centrifuge is made of stainless steel 304, food grade one. With the features of reduce labor intensity, quick discharging, easy cleaning filter bag, the PD series centrifuge machine has received good reputation. Also with this type metal powder dewatering centrifuge, we got rid of traditional suspending type of three legs support, it adopts flat-plate counterweight and high viscosity damping agent vibration isolator for absorbing the vibration, and the installation don't need concrete foundration.

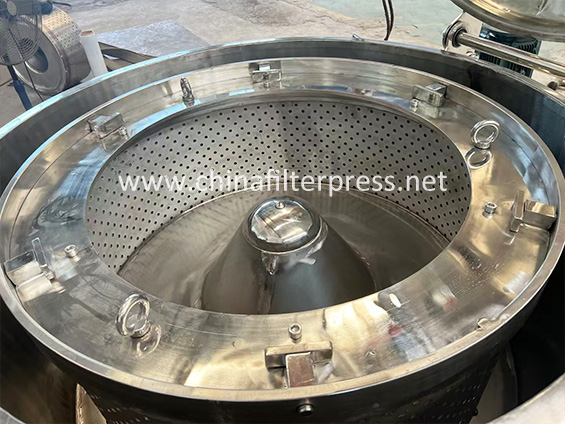

The drum runs with high-speed by motor, materials enter the drum from top feed pipe ,then run forward to the shell of the drum by centrifugal force, in this case liquor pass through the sieve pore and sieve pore of the shell, then be discharged. Then solid be hold in the drum. After the separation open the machine, loosen the lock blocks on lip ring, and suspend the lip ring together with the filter bags containing cake to discharge. Loosen the grip, make sure the filter bag open, then the filter cake will automatic drop down.
1. It has the characteristics of smooth start-up, adjustable separation factor, large capacity, high efficiency, simple operation, quick unloading, good safety performance, clean environment, and low labor intensity.

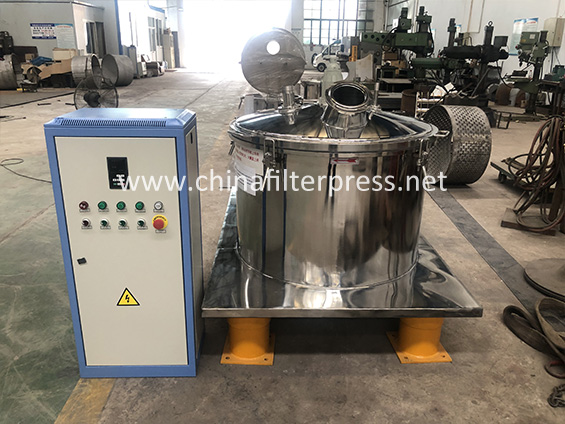

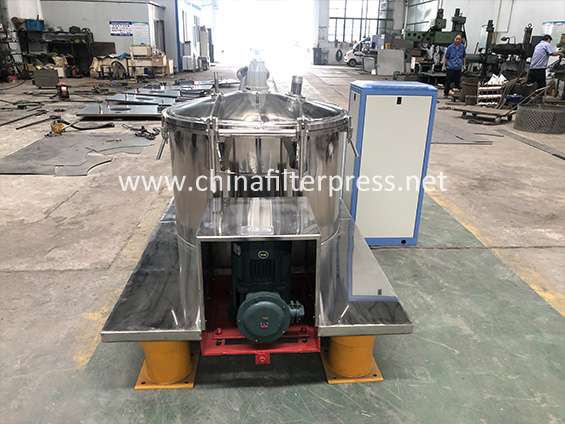

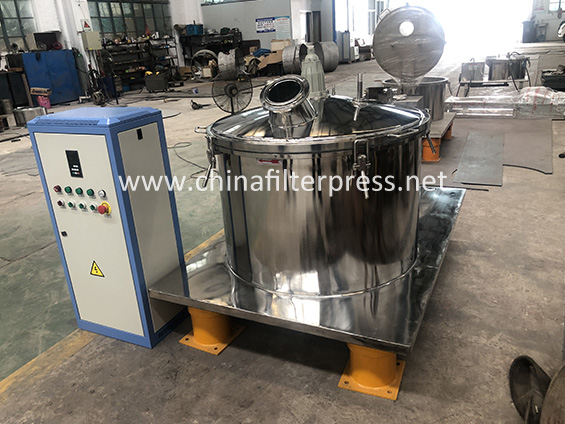

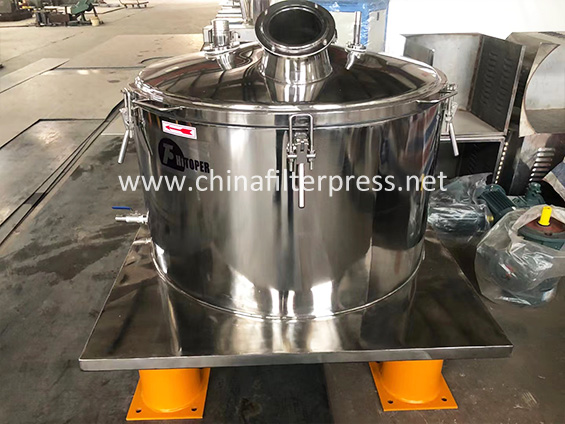

2. It cancels the traditional hanging machine legs, adopts flat counterweights and high-viscosity damping isolators to absorb vibration, and is installed without foundation.
3. Fully open large flap, quick-open hanging bag unloading, with motor overheating, overload, overcurrent protection and other interlocking protection.
It is applicable to the separation of suspension containing solid-phase granules with the diameter greater than 0.01mm. And it is especially applicable to the filtering of toxic and flammable materials. It has found wide applications in such trades as chemical, pharmacy, food, light industry, etc. For example: gypsum, thiamine, mirabilite, ferric sulfate, copper sulfate, nickel sulfate, potassium chloride, acetic acid, borax, soda, rubber additives, dye, plastic raw material, soap, grease, all kinds of resins, food salt, sodium glutamate, food additives, starch sugar-making, vitamins, antibiotics, herbicide, insecticide, the dehydration of such mineral fines as copper, zinc, aluminum, etc.
| Type | Drum | Separation factor(w2r/g) | Motor power(KW) | Weight(kg) | Dimension(mm)(L×W×H) | |||
| Dia.(mm) | Volume(L) | Load limit(kg) | Rotation speed(r/min) | |||||
| PD800 | 800 | 100 | 135 | 1200 | 645 | 7.5 | 1500 | 1680×1300×980 |
| PD1000 | 1000 | 175 | 250 | 1000 | 560 | 11 | 2500 | 2000×1550×1280 |
| PD1200 | 1200 | 280 | 300 | 960 | 620 | 18.5 | 3000 | 2260×1750×1300 |
| PD1250 | 1250 | 300 | 350 | 960 | 645 | 18.5 | 3800 | 2260×1765×1350 |
| PD1500 | 1500 | 600 | 650 | 650 | 355 | 22 | 4800 | 2600x2135x1620 |
