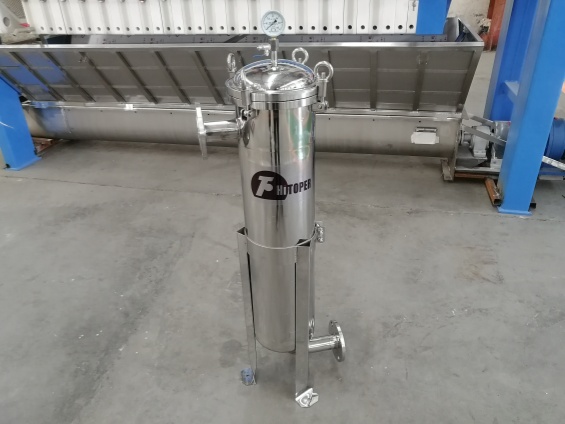

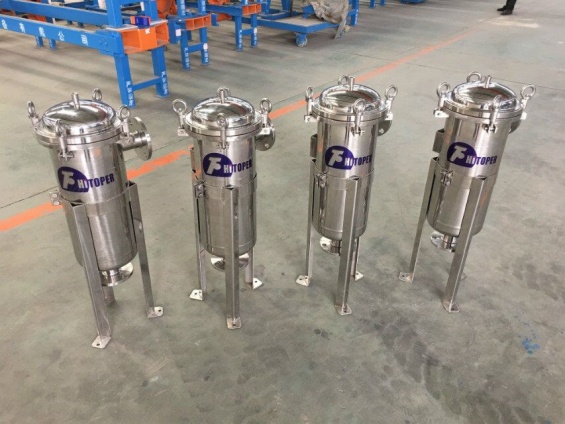

Bag filter

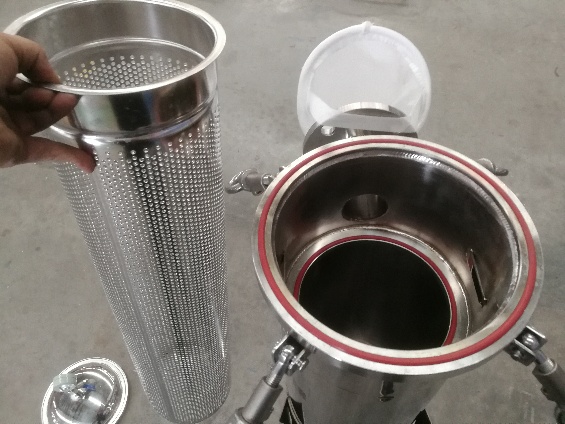

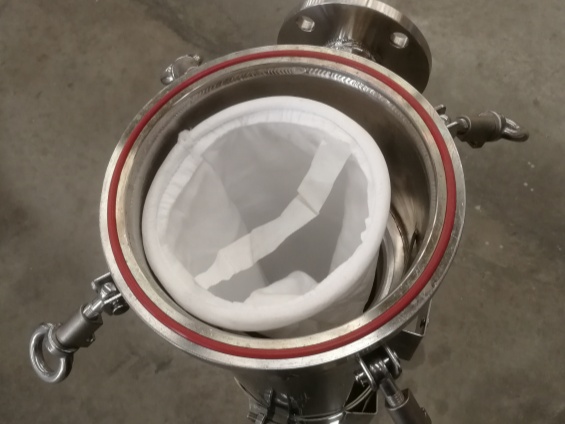

This machine is easy to operate. When using it, you only need to install the filter bag of the required fineness grade in the filter cartridge, check whether the O-ring is intact, and then tighten the ring bolt of the filter cartridge cover to start working.

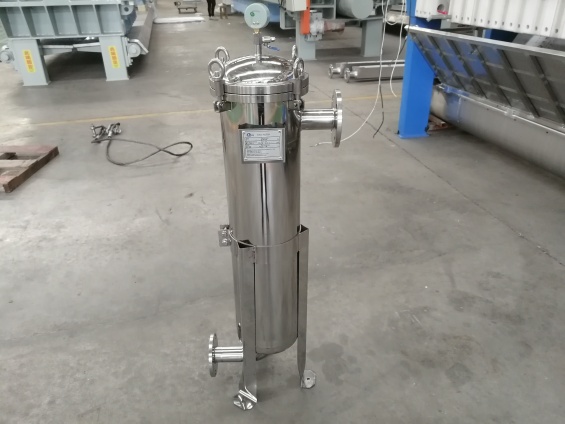

After the pump is started, the pressure gauge on the filter machine rises slightly, and the initial pressure is about 0.05MPa. As the use time increases, the filter residue in the cylinder gradually increases. When the pressure reaches 0.4MPa, the machine should be stopped and the cartridge cover should be opened to check the residue left in the filter bag.

The filter bag can be replaced and continued to be used (the filter bag can generally be reused after cleaning). The filter pressure is generally adjusted to 0.1-0.3MPa, which is more appropriate. It can be adjusted through the reflux pipeline or the reflux valve on the pump. Excessive filtration pressure will damage the filter bag and the protective net, so special attention should be paid.

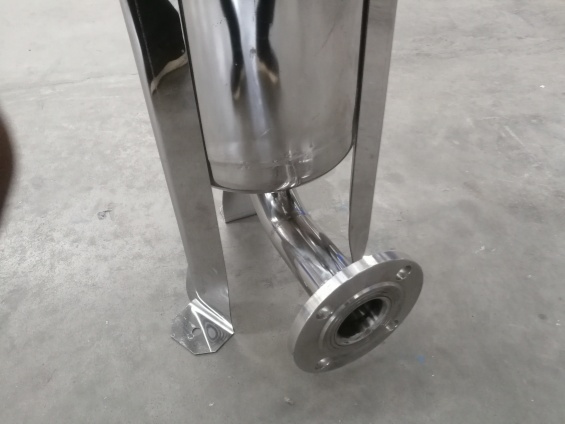

1.The filtering method adopted by the bag filter is the side-in and bottom-out method, which is convenient for cleaning. The side-in and side-out method can also be adopted 2.Material: SUS304, SUS316L

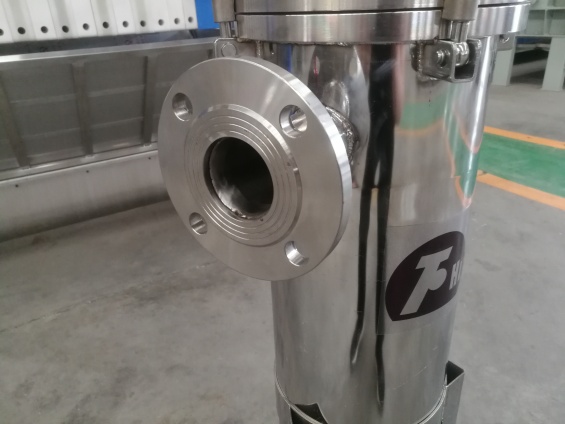

3.Interface type: flange/quick-fit, etc.
4.Sealing material: NBR/silicone/fluororubber/EPDM sealing ring
5.Sealing type: O-ring
6.Applicable filter bags: No. 1 filter bag, No. 2 filter bag, No. 4 filter bag
7.Design pressure: 12bar/160 degrees Celsius
8.Design flow: 10-40 cubic meters per hour
9.Surface treatment: sandblasting or polishing

1.Bag filters have large processing capacity, small size, large dirt holding capacity, and high filtration efficiency.
2.Based on the working principle and structure of the bag filtration system, it is convenient and quick to replace the filter bag, and the filter machine does not need to be cleaned, saving labor and time, and low operating cost.

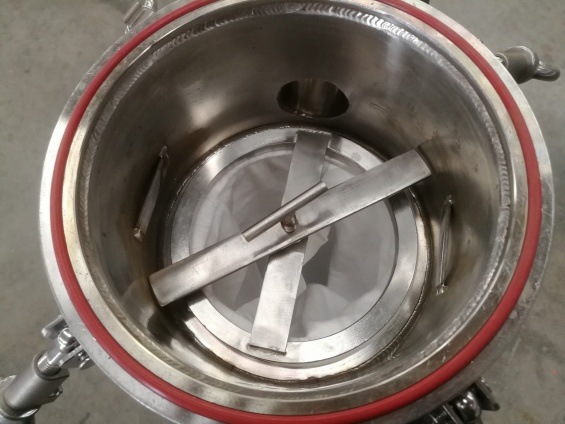

3.The top cover fully presses the filter bag, and the filter bag has a low chance of side leakage, which effectively guarantees the filtration quality.
4.The structural design of the bag filter is to seal the top cover and the filter cartridge with four sets of pendulum-type ring bolts, which can bear a large working pressure, with small pressure loss, low operating costs, and obvious energy-saving effects.
5.The filtration accuracy of the filter bag is continuously improved, and has now reached 0.5um.
6.Bag filtration has a wide range of applications, flexible use, and various installation methods.
7.Reasonable structure, stable and reliable filtration
8.The installation height is adjustable to meet the space requirements of specific application occasions
9.It can be used in conjunction with self-cleaning, membrane filtration or other filtration systems to meet different needs.

Bag filters can be widely used in paint, beer, vegetable oil, medicine, chemicals, petroleum products, textile chemicals, photosensitive chemicals, electroplating liquid, milk, mineral water, hot solvents, latex, industrial water, sugar water, resin, ink, industrial wastewater, juice, edible oil, wax, etc.
