The stainless steel stack filter is a newly developed laminated precision liquid filter, which is widely used in chemical, pharmaceutical, edible oil, beverage, wine, mineral water, petroleum, environmental protection and other industries. It is an ideal new equipment for filtering, clarifying and extracting tiny impurities in various liquids.

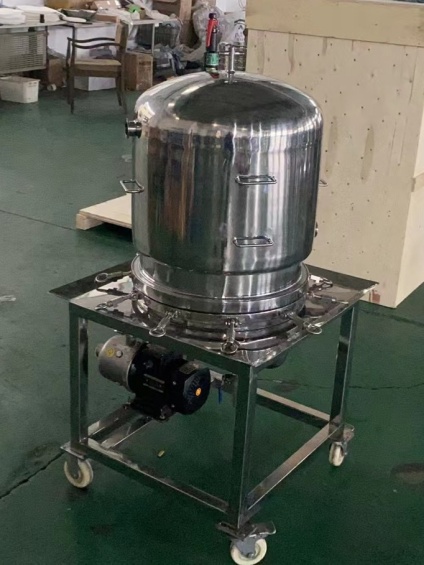

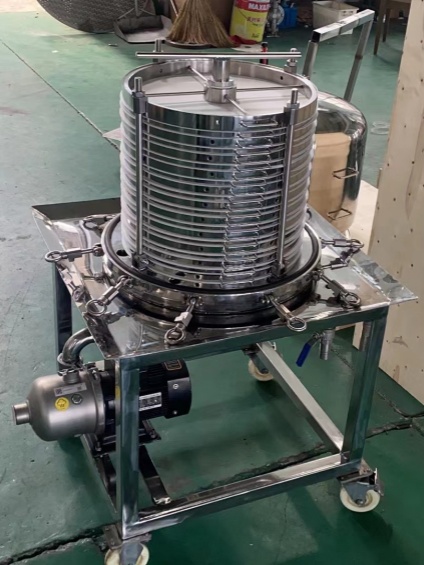

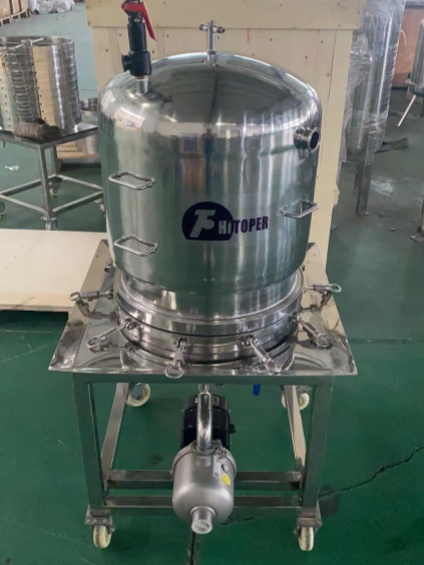

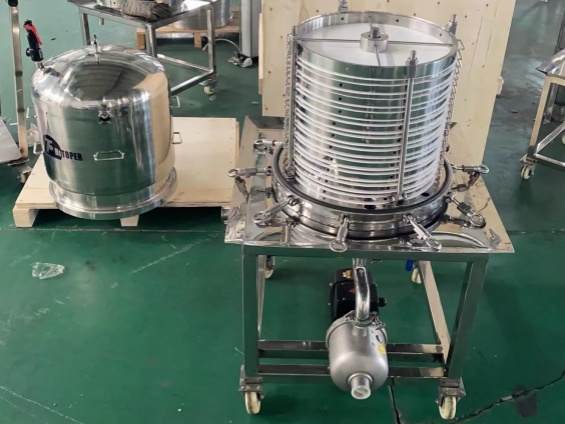

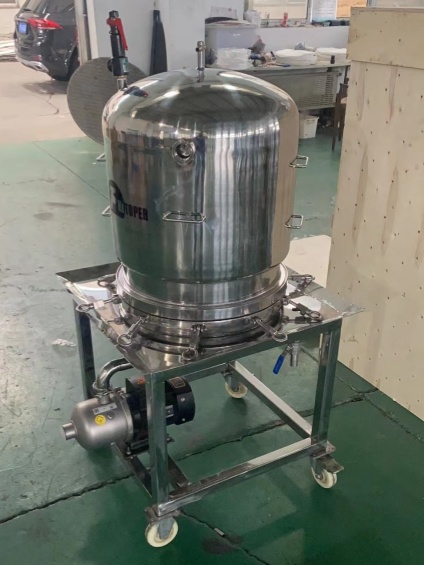

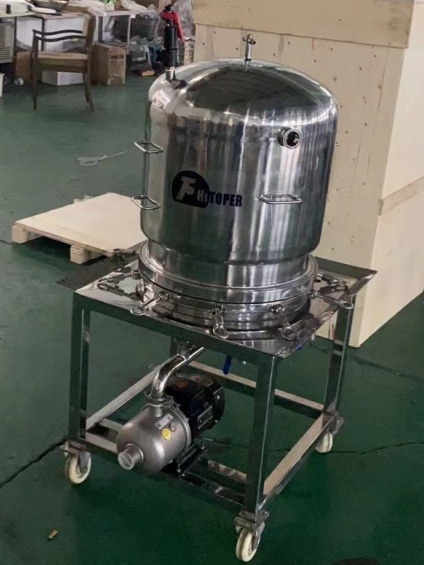

The stainless steel stack filter is a newly developed laminated precision liquid filter, which is widely used in chemical, pharmaceutical, edible oil, beverage, wine, mineral water, petroleum, environmental protection and other industries. It is an ideal new equipment for filtering, clarifying and extracting tiny impurities in various liquids. The internal filtering device of the stainless steel stack filter is composed of multiple layers of overlapping filter screens. The specifications of the filter can be selected according to the flow rate required by the user. At the same time, two types of filters are available: one with a matching pump and one without a matching pump. The filter and pump are installed on a mobile platform. After cleaning, they can filter other liquids in a different place, and one machine can be used for multiple purposes.
Open the outer shell and put the filter cloth (or filter membrane, filter paper) on the filter screen and below as required, tighten the support rod, cover the gland, and tighten the flange bolt to make it sealed. Open the exhaust valve and the liquid inlet valve to allow the raw liquid to enter the filter under pressure. When the raw liquid fills the filter, close the exhaust valve. A certain pressure will be maintained in the filter. Under the action of a certain pressure, the raw liquid enters the cavity. The raw liquid penetrates the filter cloth (or filter membrane, filter paper) of the required fineness grade to obtain qualified filtrate. The fine impurity particles are captured by the filter cloth (or filter membrane, filter paper) and retained in the cavity, thus completing the filtration process. During the filtration process, the operator should pay attention to the changes in the pressure gauge. When the pressure gauge pointer points to 2kg from low to high, it means that there is a lot of material in the container that needs to be opened and cleaned.
The stainless steel stack filter is made of SUS316L or SUS304 high-quality stainless steel, with excellent craftsmanship, safe and stable performance, corrosion resistance, durability, novel structure, easy operation, flexible energy saving, and multi-purpose filtration equipment with strong adaptability. This machine has the characteristics of large liquid filtration area per unit space, fast speed, large flow rate, and high efficiency.
1. The stainless steel stack filter can withstand a pressure of 0.1--0.8Mpa and does not leak liquid. Because this machine uses mechanical compression and fully enclosed flange connection, leakage is eliminated
2. The maximum flow rate of the stainless steel stack filter can reach 200T/h. Because this machine enters from the inlet DN40 or DN50, DN80, and enters the filter from two to three inlets, plus 6-8 holes in the middle of each layer of the filter frame to enter the inner cavity for filtration, and then comes out from the multiple holes in the middle of the mesh plate, the liquid outlet DN40 or DN50, DN80, so as to fully ensure the inlet and outlet of the liquid, which can ensure a large flow and shorten the filtration cycle.
3. The stainless steel stack filter has a large filtration area, small volume, small occupied area, and small space. This machine has double mesh plates for filtration, and ensures a large filtration surface, light weight, and easy operation.
4. The stainless steel stack filter has a unique circulation reflux system and a drain valve in the filter, which is an ideal equipment for the activated carbon filtering industry. (The filter frame height is 1.5cm-10cm).
5. The stainless steel stack filter is suitable for the problems of low liquid temperature and crystallization and slow flow rate in pharmaceutical and fine chemical filtration. This machine can be heated by steam, hot water, or electric heating pipe, with a jacket, and the jacket can be made into three layers.
The stainless steel stack filter can be used for primary filtration, decolorization, decarbonization, deep filtration, semi-fine filtration, fine filtration, etc. It is widely used in chemical, pharmaceutical, edible oil, beverage, wine, mineral water, petroleum, environmental protection and other industries,which is ideal new equipment for filtering, clarifying and extracting tiny impurities in various liquids.
| Model | Layer | Filter area(M2) | Filter medium Diameter (mm) | Filtraiont pressure (MPa) | Theoretical water flow(t/h) | Quantity of activated carbon (kg) |
| TB-Ф300H | 10 | 0.7 | Ф310 | 0.2-0.6 | 3 | 1-4 |
| TB-Ф300H | 20 | 1.4 | Ф310 | 0.2-0.6 | 6 | 45724 |
| TB-Ф300H | 30 | 2.1 | Ф310 | 0.2-0.6 | 8 | 45759 |
| TB-Ф400H | 20 | 2.5 | Ф410 | 0.2-0.6 | 10 | 5-18 |
| TB-Ф400H | 30 | 3.7 | Ф410 | 0.2-0.6 | 15 | 45891 |
| TB-Ф400H | 40 | 5 | Ф410 | 0.2-0.6 | 20 | 45960 |
| TB-Ф500H | 20 | 3.9 | Ф510 | 0.2-0.6 | 16 | 45989 |
| TB-Ф500H | 40 | 7.8 | Ф510 | 0.2-0.6 | 31 | 22-56 |
| TB-Ф600H | 20 | 5.6 | Ф610 | 0.2-0.6 | 22 | 20-50 |
| TB-Ф600H | 30 | 8.4 | Ф610 | 0.2-0.6 | 33 | 30-80 |
| TB-Ф600H | 40 | 11.3 | Ф610 | 0.2-0.6 | 45 | 40-100 |
| TB-Ф700H | 20 | 7.7 | Ф710 | 0.2-0.6 | 30 | 30-100 |
| TB-Ф700H | 40 | 15.3 | Ф710 | 0.2-0.6 | 62 | 50-150 |
| TB-Ф800H | 30 | 15 | Ф810 | 0.2-0.6 | 70 | 50-150 |
| TB-Ф800H | 40 | 20 | Ф810 | 0.2-0.6 | 80 | 70-200 |
| TB-Ф1000H | 30 | 23.5 | Ф1010 | 0.2-0.6 | 95 | 100-300 |
| TB-Ф1000H | 40 | 31.4 | Ф1010 | 0.2-0.6 | 130 | 150-400 |
| Note: The size of this equipment can be customized according to different customer needs. | ||||||
